Specification

Specifications Parameter value
Input voltage range 187 В – 253 V
Operating temperature range from 0 to +45
Output voltage from 10,0 to 99,9 Volts
Charge current from 1,0 to 40 Amp
Rated power 4 000 Wt
Dimensions 450×84×380 mm
Weight 9,1 kg
Painting type powder paint
Degree of protection IP20
Guarantee period 1 year
Service functions
Number of charge algorithms (profiles) 5
Telesignalization
Power supply mode
Overvoltage protection function
Overheat protection function
Overload (short-circuit) protection function
Current adjustment (discreteness 0.1 A)
Voltage adjustment (0.1 V discreteness)
Operation with BMS (via RS-485)
Technical support during operation

Distinctive features

A set of charging profiles allows you to efficiently charge new batteries as well as batteries that have been in service for a long time. All types of batteries can be charged by changing the charging parameters.

Supported battery types
Lead-acid poured starter
traction
backup
AGM
(Gel)
Alkaline
Lithium (Li-Ion, LiFePO4)

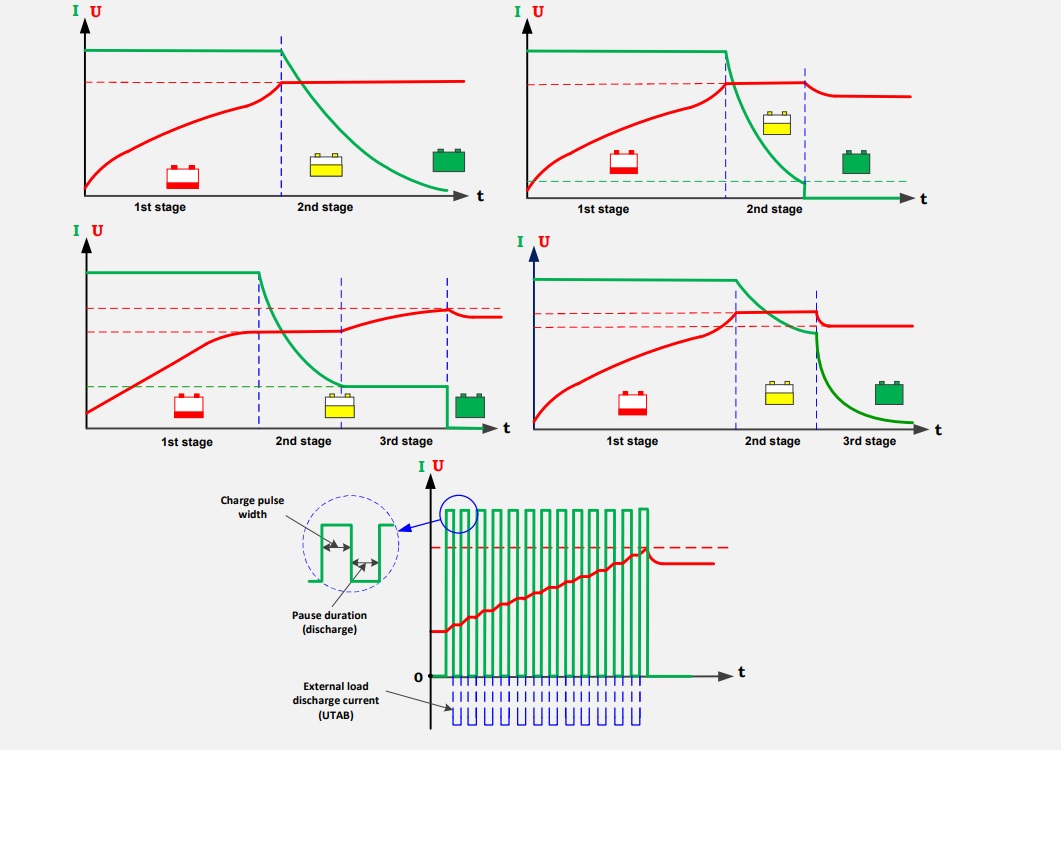

battery charge graph

Realizable charge profiles

  • Current-limited stabilized voltage charge (buffer mode);
  • Stabilized current charge with voltage limitation;
  • Two-stage - charge with stabilized current, charge with stabilized voltage "IU - characteristic" (DIN 41 773);
  • Three-stage - main charge with stabilized current, additional charge with stabilized voltage, transition to maintenance mode - permanent readiness for operation;
  • Maintaining charge (self-discharge current compensation) for batteries that have not been in service for a long time;
  • Equalizing charge (elimination of differences in the degree of charge of the cans in the battery);
  • Carrying out control and training cycles together with the UTAB 6-48-65 battery testing device;
  • Charging with direct current of alternating polarity. - Desulphation, restoration of AB.
